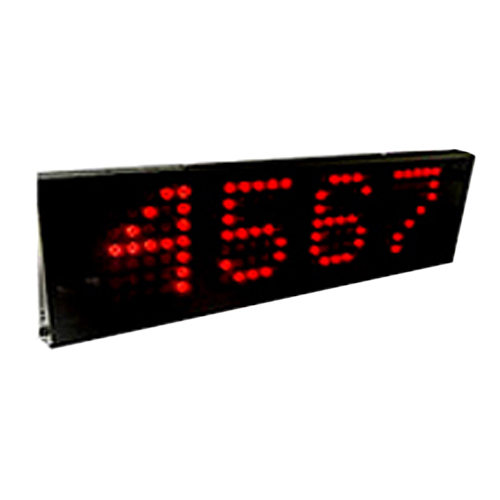

Electronic Counter RS232 Serial Display
- Product Code: LED_EDI_ED800D_111_4D_N1
- Availability:
-
- 2 or more $1,165.13
- 5 or more $1,135.25
- 10 or more $1,105.38
- 25 or more $1,075.50
REQUEST A QUOTE8" RS232 or RS422/485/Ethernet/Modem Serial Input Counter
RS232 OR RS422/485/Ethernet/Modem controllable Bar Segment, Dot Matrix Counter
Select from 64 Addresses and 9 Baud rates
Standard ASCII Protocol
Multi-drop networking
Large Red, Amber, or Green LEDs (Red standard)
4 - 16 digits available (4 digits standard)
Rugged Aluminum enclosure
120vac @ 60 hz., 6 ft. line cord
Terminal block provided for wiring
Wireless available

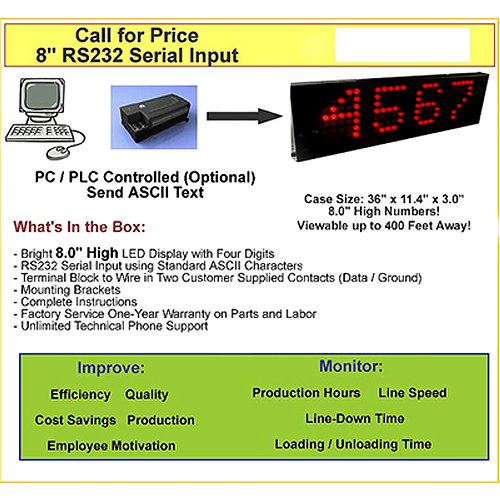

A 4-digit model that receives either an RS232 or RS422/RS485 serial data signal from a PC/PLC
scale or other device which transmits a typical ASCII serial data string. Accessible dip-switches allow
for data type (RS232 or RS422/485), address, baud rate, parity and data bit selection.
SERIAL INPUT OPTIONS
Variable baud rates: The user can specify the baud rate for the data string sent. Dip-switches
enable easy selection between 600/1200/2400/4800/9600 BPS.
Addressable: The user can specify the two-digit address of one or multiple displays. Addresses
range from “00” (general broadcast) to “64” and from 0 to 256 - 3 digit addressing.
Number of Digits: The standard is four digits. The option for 1 to 16 digits in length is available.
Character options: The unit will display a decimal point or a negative sign in any position simply by
adding it to the data string. Also, the option to blank the unit is provided.
Application:
Monitor:
ProductionScale Output
Machine Status
Assembly Line Status
Improve:
EfficiencyProductivity
Employee Motivation
Specifications:
Data:
Two-Wire From PC/PLC/driving device into a Terminal BlockEthernet (RJ45 Connector)
Typical 128 character ASCII code
Baud rate selectable –600/1200/2400/4800/9600 BPS
98 unique addresses
Data bit selectable – 7 or 8 (standard)
Optional fixed decimal point /Floating decimal point (standard)
Data types received: RS232, RS422/RS485, LAN/Ethernet, TTL, Current loop, Modem
Environmental:
Operating Temp: 32° to 120°F
Electrical:
Power Source: 120 VAC @ 60 HZ
Power Consumption: Max. 20 Watts
Current Draw: Typical 900mA
Power Cord: 6 ft
Physical:
Construction: Extruded Aluminum
Mounting: Two 1/4x20 Hex Bolts
Designed to be installed and viewed indoors
Operating Environment: 32 to 120 Degrees (0 to 49 Degress C) / 0 to 95% Humidity
Dimensions: 36"L x 11.4"H x 3.0"D
Weight: Approx. 25 lbs.
Number of Digits: 4
Character Height: 8"
Viewing Distance: Up to 400'
LED color/Acrylic Face: Red (Amber/Green available)
LED Intensity: 10 MCD High-Intensity Discrete LEDS
UL Listed power supply: Yes
Enclosure: Black Extruded Aluminum NEMA 1 Rated / NEMA 12 Optional
Warranty: 1 Year Factory Service
MPN: ED800D-111-4D-N1
