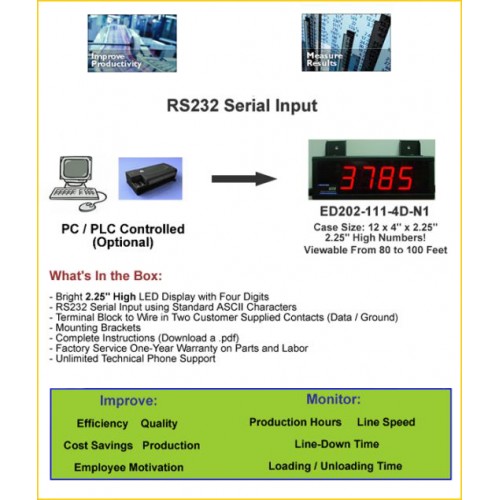

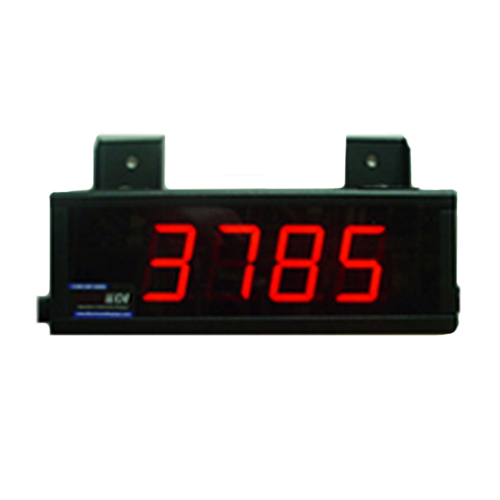

Counter Display RS232 Serial Input, Numerical Electronic Display

Specifications:

Data:

Two-Wire From PC/PLC/driving device into a Terminal Block
Ethernet (RJ45 Connector)
Typical 128 character ASCII code
Baud rate selectable –600/1200/2400/4800/9600 BPS
98 unique addresses
Data bit selectable – 7 or 8 (standard)
Optional fixed decimal point /Floating decimal point (standard)
Data types received: RS232, RS422/RS485, LAN/Ethernet, TTL, Current loop, Modem

Environmental:

Operating Temp: 32° to 120°F

Electrical:

Power Source: 120 VAC @ 60 HZ
Power Consumption: Max. 20 Watts
Current Draw: Typical 900mA
Power Cord: 6 ft

Physical:

Construction:  Extruded Aluminum
Mounting:  Two 1/4x20 Hex Bolts
Designed to be installed and viewed indoors
Operating Environment: 32 to 120 Degrees (0 to 49 Degress C) / 0 to 95% Humidity
Dimensions: 12"L x 4"H x 2.25"D
Weight: Approx. 25 lbs.
Number of Digits: 4
Character Height: 2.25"
Viewing Distance: Up to 400'
LED color/Acrylic Face: Red (Amber/Green available)
LED Intensity: 10 MCD High-Intensity Discrete LEDS
UL Listed power supply: Yes
Enclosure: Black Extruded Aluminum NEMA 1 Rated / NEMA 12 Optional
Warranty: 1 Year Factory Service
