Counter Display RS485 Serial Input Numerical Display

2 orders
  • Product Code: LED_EDI_ED202_117_4D_N1
  • Availability:

  • 2 or more $516.75
  • 5 or more $503.50
  • 10 or more $490.25
  • 25 or more $477.00

Available Options

  • Categories:
  • Tag:

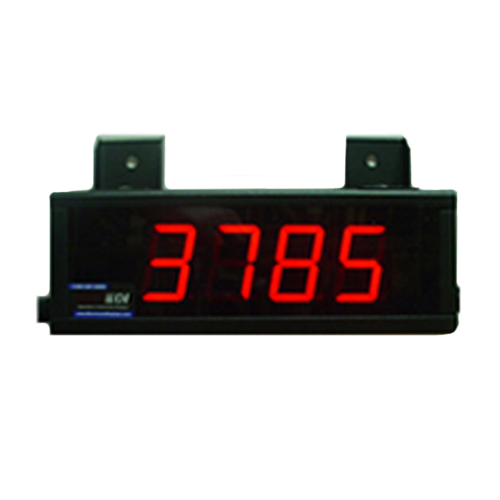

2.25" RS485 Serial Input Numerical Display


Display real-time production information to your employees or customers. The display will receive anRS422/RS485 data signal from a PC / PLC and update the unit using standard ASCII protocol. A terminal block inside the display allows wiring.

 - A 4-digit serial data interface display receives RS422/485 data and displays it.

 - Features a floating decimal point.

Data protocol: 8 data bits, 1 stop bit & no parity.

Data string (ASCII) protocol:   <2-digit address> <4 digit data, optional decimal point>

- Field-selectable baud rate that is factory set to 1200.

- Field-selectable address factory set to 01 for one display and in sequence for multiple displays



Scale Output
Machine Status
Assembly Line Status


Employee Motivation



Operating Temp: 32° to 120°F


Power Source: 120 VAC @ 60 HZ
Power Consumption: Max. 20 Watts
Current Draw: Typical 900mA
Power Cord: 6 ft


Construction:  Extruded Aluminum
Mounting:  Two 1/4x20 Hex Bolts
Designed to be installed and viewed indoors
Operating Environment: 32 to 120 Degrees (0 to 49 Degress C) / 0 to 95% Humidity
Dimensions: 36"L x 11.4"H x 3.0"D
Weight: Approx. 25 lbs.
Number of Digits: 4
Character Height: 2.25"
Viewing Distance: Up to 400'
LED color/Acrylic Face: Red (Amber/Green available)
LED Intensity: 10 MCD High-Intensity Discrete LEDS
UL Listed power supply: Yes
Enclosure: Black Extruded Aluminum NEMA 1 Rated / NEMA 12 Optional
Warranty: 1 Year Factory Service
