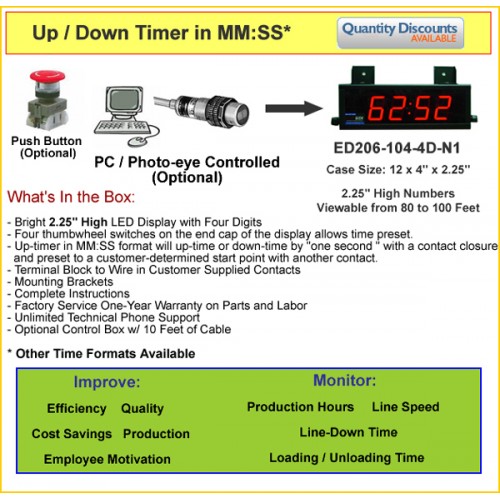

Industrial Timer LED Display Up/Down
- Product Code: LED_EDI_ED206_104_4D_N1
- Availability:
-
- 2 or more $778.05
- 5 or more $758.10
- 10 or more $738.15
- 25 or more $718.20
REQUEST A QUOTESpecifications:
Environmental:
Operating Temp:
32° to 120°F
Electrical Specifications:
Power Source: 120 VAC @ 60 HZ
Power Consumption: Max. 20 Watts
Current Draw: Typical 500mA
Activation Voltage: 5 - 24VDC @ 15mA source current
Supplied On-board Voltage: 12VDC @ 15mA isolated power supply
Power Cord: 6 ft
Physical Specifications:
Designed to be installed and viewed indoors
Operating Environment: 32 to 120 Degrees (0 to 49 Degress C) / 0 to 95% Humidity
Dimensions: 12 "L x 4"H x 2.25 "D
Weight: Approx. 6 lbs.
Number of Digits: 4
Character Height: 2.25 "
Viewing Distance: Up to 100'
LED color/Acrylic Face: Red (Amber/Green available)
LED Intensity: 10 MCD High-Intensity Discrete LEDS
UL Listed power supply: Yes
Enclosure: Black Extruded Aluminum NEMA 1 Rated / NEMA 12 Optional
Two Hanging Brackets Included for Hanging/Wall Mount
Warranty: 1 Year Factory Service
