3.28ft x 6.52ft BIM Plus-X Series Display
Sales Ends In
00
Days
00
Hours
00
Minutes
00
Seconds
- Product Code: led-bim-plus-x-3.28x6.52
- Availability: In Stock
-
- 2 or more $8,774.03
- 5 or more $8,549.05
- 10 or more $8,324.08
- 25 or more $8,099.10
REQUEST A QUOTE3.28ft x 6.52ft BIM Plus-X Series Display
The BIM Plus Series Display is an ultra-thin indoor LED display featuring lightweight 42mm thick aluminum panels. It is designed for clean, architectural installations where a thin, lightweight cabinet is important, allowing it to integrate closely with walls while supporting creative layouts, curved installations, and mixed splicing. It supports curved configurations, 90° rotation, optional 45° bevels, and front maintenance for flexible installation and easy servicing.
*** WARRANTY *** 2 Year Manufacturer's Warranty
Features and Benefits:
- 3.28ft x 6.52ft Indoor Fixed LED Display designed for retail stores, meeting rooms, houses of worship, and other commercial environments.

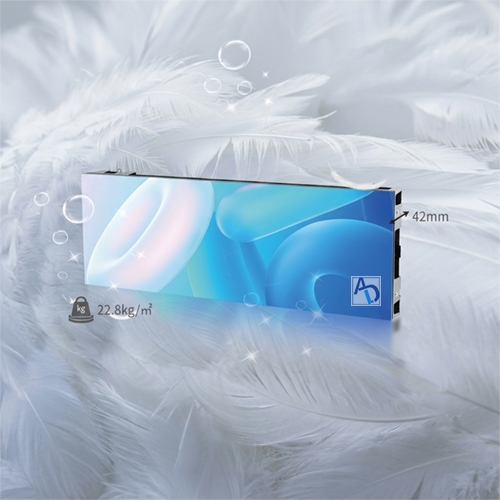

- Ultra-Thin 42mm Panels to provide a sleek profile that blends seamlessly with walls.
- Lightweight Aluminum Construction reduces installation and transportation effort.
- Multiple Panel Sizes allow staggered splicing for creative display layouts.

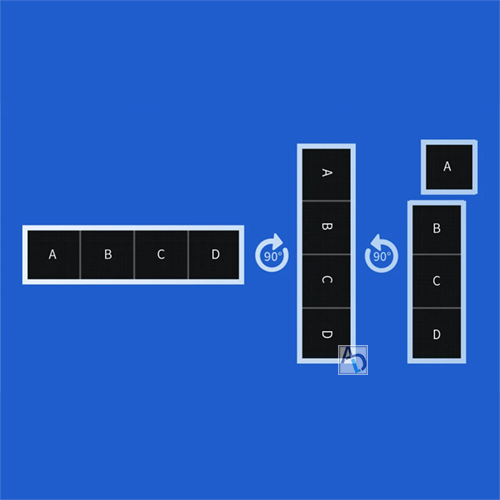

- Supports 90° Rotation without color distortion.
- Curved Splicing supports a minimum radius of 2.8 meters.

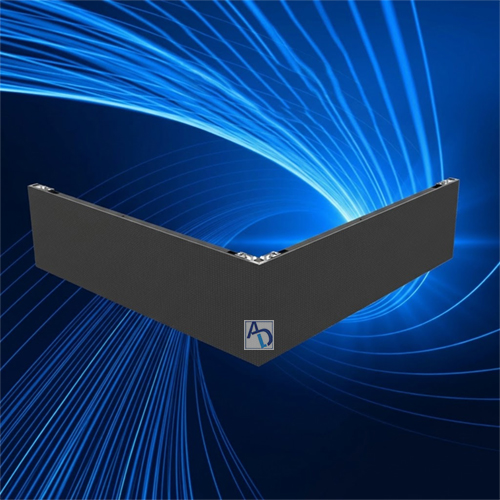

- 45° Bevel Option allows L-shaped and cube-style installations.

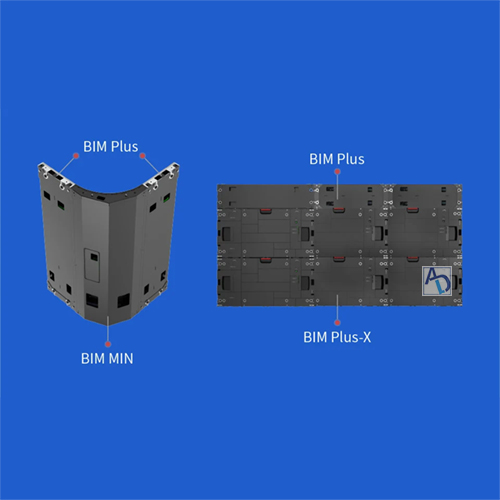

- Mixed Splicing allows use with BIM MIN and BIM Plus-X models.

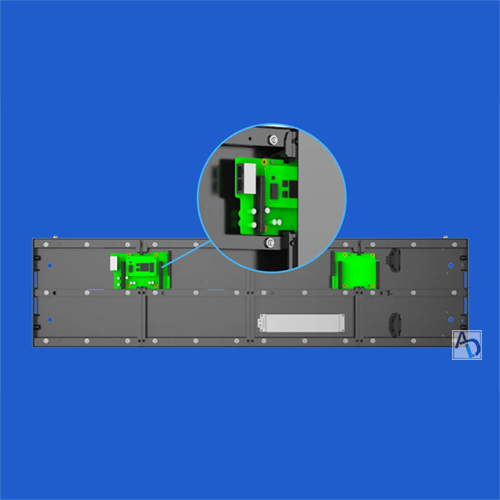

- Optional Wireless Connection simplifies the internal structure and reduces disconnection risk.
- Triple-Lock System helps maintain precise flatness and accurate display alignment.
- Front Serviceability provides convenient access for maintenance.
Hardware Specifications:
- Series: BIM Plus
- Display Size: 3.28ft x 6.52ft
- Pixel Pitch: 1.9mm / 2.6mm / 3.1mm / 3.9mm / 5.2mm

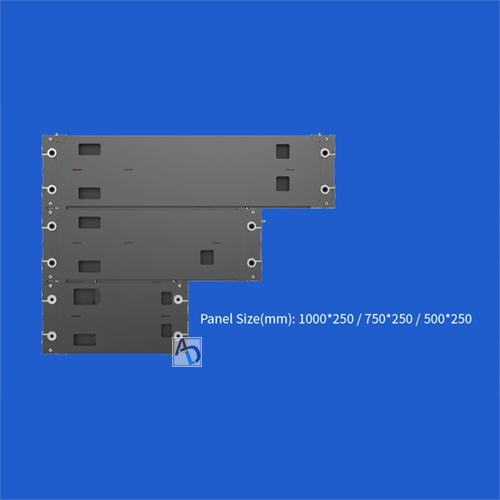

- Panel Size Options: 1000 x 250 x 42mm / 750 x 250 x 42mm / 500 x 250 x 42mm
- Panel Resolution: Varies by pixel pitch and panel size
- Panel Weight: 5.7 kg / 4.2 kg / 3.1 kg per panel
- Panel Material: Aluminum
- Panel Thickness: 42mm
- Serviceability: Front
- Minimum Curved Splicing Radius: 2.8m
- 90° Rotation: Supported
- 45° Bevel: Optional
- Wireless Connection: Optional
- Estimated Shipping Dimensions: 44in L x 28in W x 18in H
- Estimated Shipping Weight: 130 lbs.
Features and Benefits:
- 3.28ft x 6.52ft Indoor Fixed LED Display designed for retail stores, meeting rooms, houses of worship, and other commercial environments.
- Ultra-Thin 42mm Panels to provide a sleek profile that blends seamlessly with walls.
- Lightweight Aluminum Construction reduces installation and transportation effort.
- Multiple Panel Sizes allow staggered splicing for creative display layouts.
- Supports 90° Rotation without color distortion.
- Curved Splicing supports a minimum radius of 2.8 meters.
- 45° Bevel Option allows L-shaped and cube-style installations.
- Mixed Splicing allows use with BIM MIN and BIM Plus-X models.
- Optional Wireless Connection simplifies the internal structure and reduces disconnection risk.
- Triple-Lock System helps maintain precise flatness and accurate display alignment.
- Front Serviceability provides convenient access for maintenance.
Hardware Specifications:
- Series: BIM Plus
- Display Size: 3.28ft x 6.52ft
- Pixel Pitch: 1.9mm / 2.6mm / 3.1mm / 3.9mm / 5.2mm
- Panel Size Options: 1000 x 250 x 42mm / 750 x 250 x 42mm / 500 x 250 x 42mm
- Panel Resolution: Varies by pixel pitch and panel size
- Panel Weight: 5.7 kg / 4.2 kg / 3.1 kg per panel
- Panel Material: Aluminum
- Panel Thickness: 42mm
- Serviceability: Front
- Minimum Curved Splicing Radius: 2.8m
- 90° Rotation: Supported
- 45° Bevel: Optional
- Wireless Connection: Optional
- Estimated Shipping Dimensions: 44in L x 28in W x 18in H
- Estimated Shipping Weight: 130 lbs.
