LED Converter System, Analog to Digital Display

3 orders
  • Product Code: LED_EDI_ED206_105_4D_N1
  • Availability:

  • 2 or more $580.13
  • 5 or more $565.25
  • 10 or more $550.38
  • 25 or more $535.50

Available Options

  • Categories:
  • Tag:

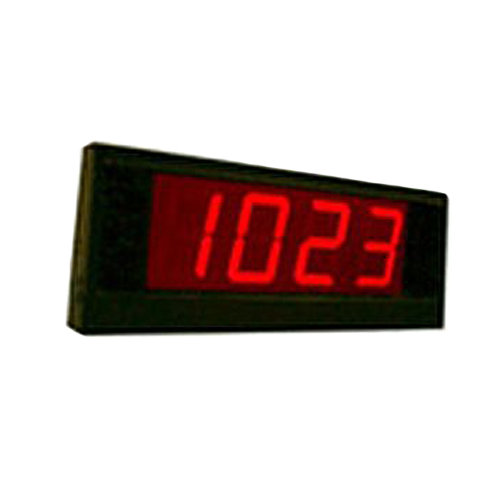

2.25" Character Height, Analog to Digital Display

This Bright 2.25", 4 digit, single sided display (double sided available) will receive an analog signal input such as temperature, speed, or weight, and convert it to a digital signal for LED display. This unit includes complete instructions, mounting brackets, a one year factory service warranty, and unlimited manufacturer phone and technical support..

The analog to digital converter system is a combination of a 4 digit LED display and an analog to digital converter PCB. The unit is calibrated at the factory to customer specifications and can also be calibrated via RS232 from a PC. (software included, see instructions below for factory calibration)


  • Tempurature
  • Weight
  • Speed
  • Pressure
  • Depth
  • Humidity
  • Voltage
***Via customer supplied input



Scale Output
Machine Status
Line Speed
Line Down Time
Loading or Unloading Time
Weight Outputs
Constant Tempurature
Evironment Variables


Employee Motivation

***For Factory Calibration send calibration spec sheet to: [email protected], reference your order # in the subject line. Or, call 1(800)916-0787 to speak with one of our customer service representatives. Please include type of calibration, calibration specs, communication method(s), proprietary connections, environmental variables, and any other information that will enable us to assist you.

For help with available options please call 1(800)916-0787


Use: Indoor
Dimensions: 12" x 4" x 2.25"
Character Height: 2.25"
Character Display Color: Red (Green or Amber available)
Maximum Characters: 4
Viewing Distance: Up to 100'
LED Intensity: 10 MCD High Intensity Digits
Operating Environment: 32°F to 120°F (0°C to 49°C)
Weight: 6 Lbs.
Enclosure: Black Extruded Aluminum, NEMA 1
Mounting: Wall or Ceiling
MPN: ED206-105-4D-N1

Customer Supplied Inputs: 4 to 20 mA or 0 to 10VDC. Others Available Upon Request.
Terminal Block Included

Electrical Specifications:

Power Source: 120 VAC @ 60 HZ
Power Consumption: Max. 15 Watts
Current Draw: Typical 500mA
Power Cord: 6 ft
