12ft x 6.7ft Pilot Pro Series LED Display

12ft x 6.7ft Pilot Pro Series LED Display

The Pilot Pro Series is a high-end rental LED display designed for various productions such as live events, virtual production studios, XR applications, and premium stage installations. It utilizes lightweight panels to support fast installation, high-quality visuals, curved and 90° configurations, and flexible hanging or stacking setups.

*** WARRANTY *** 2 Year Manufacturer's Warranty

Features and Benefits:

• 12ft x 6.7ft P2.6 Rental LED Display designed for large-scale live events, concerts, XR, virtual production, broadcasting, and immersive installations.
• 2.6mm Pixel Pitch for detailed, high-resolution visuals.
• One-Handed Installation for fast and efficient setup.

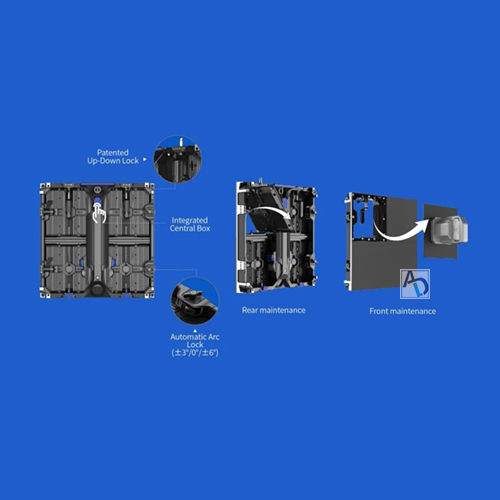

• Integrated Central Box for quick module replacement.

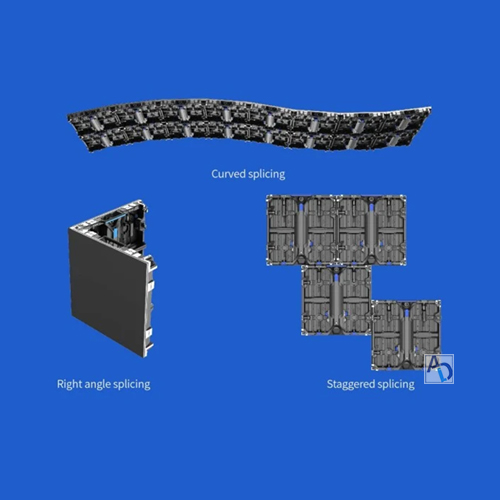

• Flexible Splicing supports standard, curved, 90°, and staggered configurations.

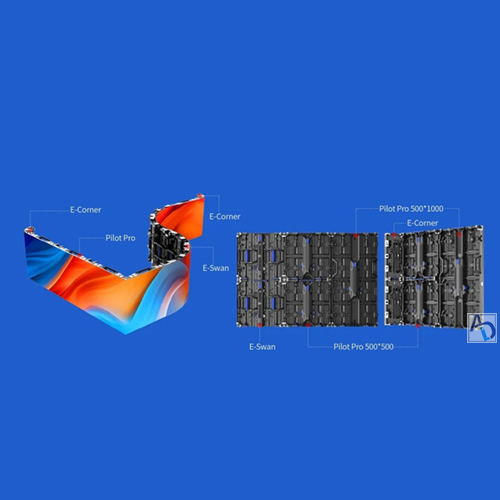

• Mixed Splicing allows integration with E-Swan and E-Corner LED displays.

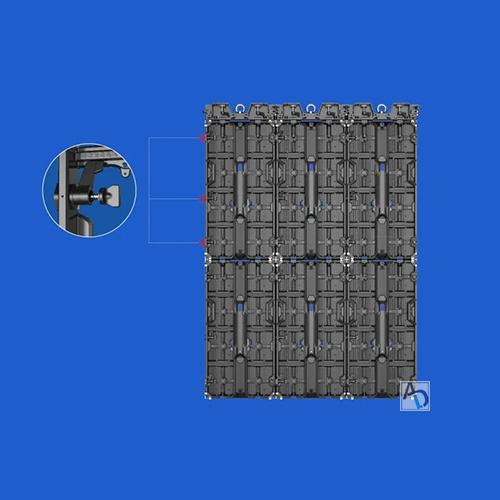

• Triple-Lock System helps maintain precise panel flatness and alignment.

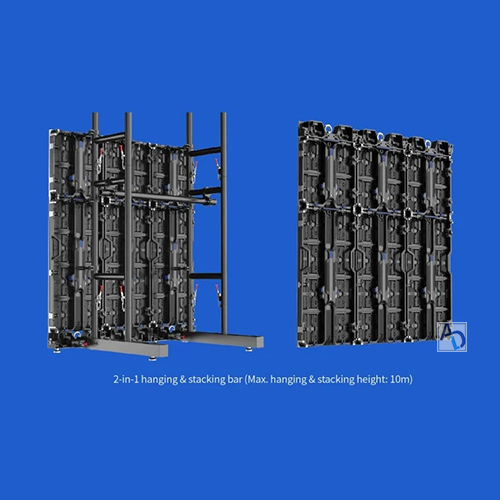

• Universal Hanging and Stacking Bars provide flexible installation options.

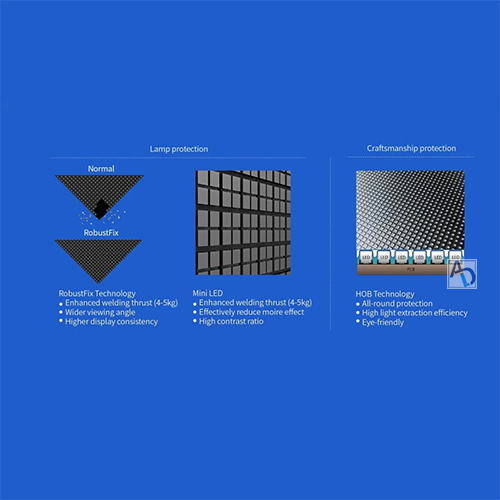

• Optional RobustFix, HOB, and Mini LED protection technologies help protect the display from impact.
• Rear Serviceability provides convenient access to LED modules and components.

Hardware Specifications:

• Series: Pilot Pro
• Pixel Pitch: 2.6mm
• Display Size: 12ft x 6.7ft
• Estimated Panel Configuration: 8 x 4
• Estimated Number of Panels: 32
• Panel Size: 500 x 500 x 73mm
• Panel Resolution: 192 x 192 / 192 x 384
• Panel Material: Die-Cast Aluminum
• Panel Weight: 8 kg / 13 kg per panel
• Brightness: 900–1500 nits
• Serviceability: Rear
• Estimated Shipping Dimensions: 42in L x 42in W x 48in H
• Estimated Shipping Weight: 680 lbs.
