Hanging Rotating Motor for Hanging Banner Displays 300lb Heavy Duty

Rotating Motor for Indoor Hanging Banner Displays 300lb Capacity

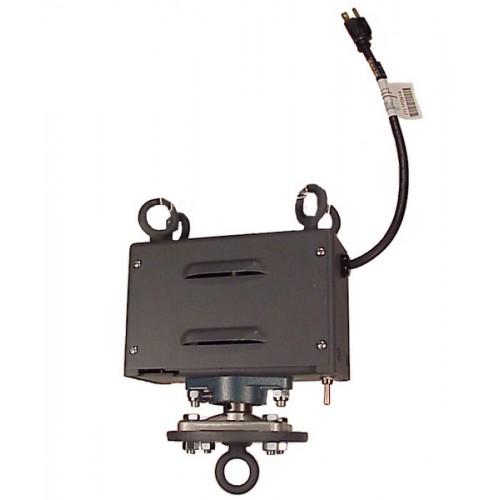

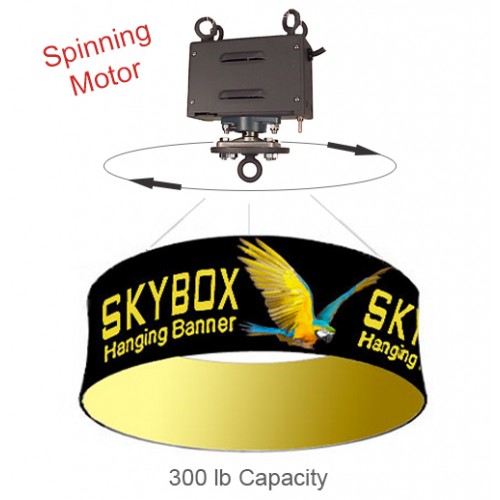

The rotating sign motor will attract more attention to your hanging banner with spinning motion. This workhorse model was designed specifically with continuous 24-hour trouble-free rotation in mind. Outfitted with a rugged chain drive, a heavy 10 gauge steel frame, and two heavy-duty bearings, this unit can easily rotate up to 300 lbs. 110 VAC standard. Designed to securely hang from the ceiling by four attachment points, simply suspend the banner frame from the motor's bottom ring. The smooth motion providing two complete revolutions per minute allows people to take in all sides of your message. The IG-5 spinning motor boasts dependable performance, durable construction and designed safety conscious. This hanging rotating motor comes with a torque relief clutch that slips harmlessly if turning motion is obstructed to prevent personal injury and keeps the motor from burning out.

*** WARRANTY *** One Year Limited Manufactures Warranty

Hanging Rotating Motor Features and Benefits:

• Holds hanging banners up to 300lbs!
• Our workhorse model designed for continuous 24-hour trouble-free rotation
• The smooth motion provides two complete revolutions per minute
• Spinning and moving displays attract more attention
• Customers will see all sides of your message!
• Safety shut off to prevent injury and protect your display

Specifications:

• Hanging weight capacity: 300lbs
• Max. display size: 15' x 15'
• Power outlet: No rotating power outlet

• Standard RPM: 2

• Torque output @ 2 RPM: 39 in-lbs [4.4 Nm]

• Motor draw: 0.1A (12 watts)

• Safety clutch: Standard feature
• Shipping size: 15" x 15" x 17"
• Shipping weight: 19 lbs

Installation Guidelines:

• Max hanging weight = 300 lbs
• Max. Display Size: 15' x 15'
• Do NOT exceed rated capacity of motor unit

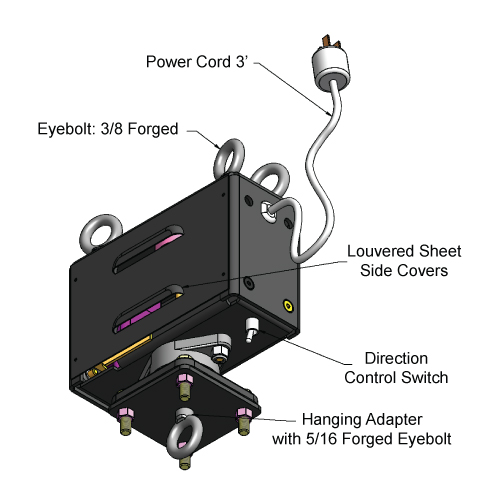

• Hanging load MUST be balanced and centered under motor

• Eyebolts can be added for rigging. Use wire rope to allow hanging sign to self-balance
• Do NOT allow bare wire rope to rub on eyebolt
• Wire rope should be protected to prevent fraying or failure

• Plug unit into wall
• Press direction switch to start unit

Options and Upgrades:

• Units are available with electrical outlet for lighting
• Remote control is available

Downloads: Spinning Motor for Hanging Banners

NOTE: To download files, click the links below or Right Mouse Click and choose "Save Target As..."
Spinning Motor Setup Spec Sheet
Spinning Motor Installation and Maintenance
