Neon Backlit Outdoor Open Closed Display

1 orders
  • Product Code: LED_ST_47925_Nn_7x34
  • Availability:

  • 2 or more $774.15
  • 5 or more $754.30
  • 10 or more $734.45
  • 25 or more $714.60
$794.00
Quantity:
  • Categories:
  • Tag:

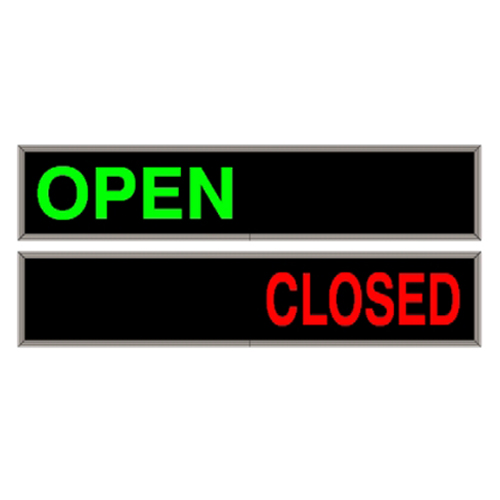

Outdoor Open - Closed LED Backlit Display

This outdoor LED Backlit Open display was designed for the rugged environment of drive-thru lanes at banks, airports, and any place that requires a dependable lane control device. It is also suitable for outdoor ceiling or wall mount above walkways at strip malls, store fronts, restaurants, nightclubs, movie theaters and any place else that wants to get the message out. This sign Features a bright Green Open message to let your customers know you are "Open For Business" and a bright Red "Closed" message to let them know when you are closed. The messages "blank out" when turned off to eliminate confusion. PHX Series signs are guaranteed readable in direct sunlight. It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. TUL/cUL Listed for wet locations.

This single-sided, Weatherproof Reflected LED Backlit display features an anodized aluminum housing in a duranodic bronze finish, a long life, 100,000+ hours life expectancy, and a 5 year factory warranty!

The unit can be controlled via a hardwire switch (sold separately).

Features:

  • Single-Faced
  • 3.75" Character Height
  • Dimensions: 7" x 34 " x 2.5"
  • Illumination Source: Reflected LED
  • Long Life, Up to 100,000 hours
  • Continuous, corrosion resistant housing
  • Message Panel Material: Translucent Black Acrylic, 1/8" Thick
  • Vinyl Style: Vinyl is applied to second surface
  • Vinyl Color: Black
  • Duradonic Bronze Cabinet
  • Mounting: Wall (standard), Ceiling or angle mounts optional
  • 5 Year Factory Warrant
Display installation, Electrical hookup, Display Mounting Hardware (unless specified above), Transportation, Permits, Site Surveys, and other ancillary services and fees are not included with this product. It is strongly recommended you check with your local code enforcement bureau before purchasing this product!

Measurements and Specifications:

  • Weight: 6.642 lbs.
  • Dimensions: 7.000" H x 18.000" W x 2.500" D
  • Faces: Single Face
  • Graphic: Printed
  • Color: Black Blockout
  • LED Viewing Angle: Wide Angle LEDs
  • Face Material: 1/8" Dark Grey Diffused Acrylic
  • UL/cUL Listed: Wet Locations
  • Finish: Duranodic Bronze
  • Illumination Type: PHX LED
  • Mounting Channel: None
  • Input Voltage: 12-24 VDC
  • Flashing: Not Included
  • Extrusion: Combo 2.5"
  • Warranty: 5 Year Warranty

Electrical Specifications:

NOTE: To download files, click the links below or Right Mouse Click and choose "Save Target As..."

Specifications Printable Spec Sheet for LED Backlit Outdoor Open - Closed Display

Specifications Printable Set up and Wiring for LED Backlit Outdoor Open - Closed Display
