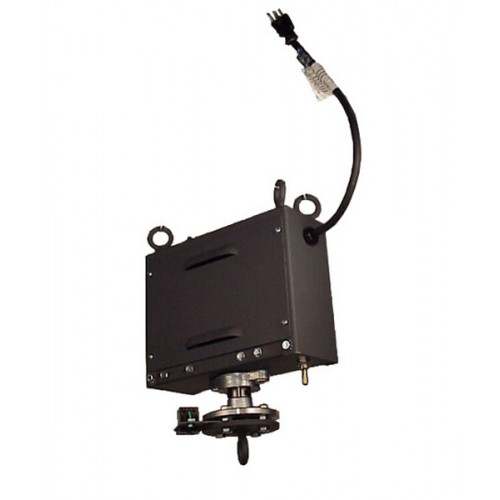

Spinning Motor Indoor for Hanging Banner Displays 200lb with Rotating Outlet

Spinning Motor Indoor for Hanging Banner Displays 200lb Capacity and Includes Rotating Power Outlet

The hanging spinning motor will attract more attention to your hanging banner with spinning motion. Designed to securely hang from the ceiling by four attachment points, simply suspend the banner frame from the motor's bottom ring. The smooth motion providing two complete revolutions per minute allows people to take in all sides of your message. The IG-4 spinning motor boasts dependable performance, durable construction and designed safety conscious. This hanging rotating motor comes with a torque relief clutch that slips harmlessly if turning motion is obstructed to prevent personal injury and keeps the motor from burning out.

*** WARRANTY *** One Year Limited Manufactures Warranty

Features and Benefits:

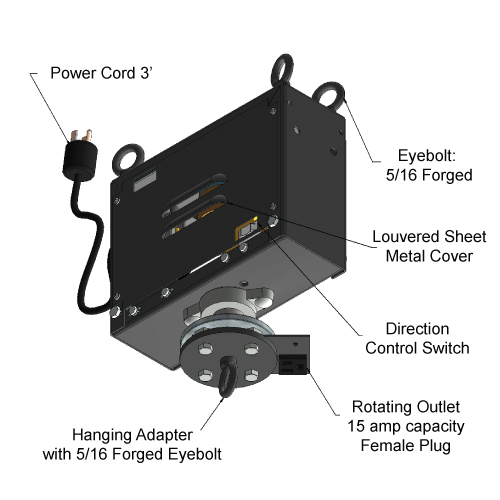

• Features a handy rotating power outlet for lighting and other electrical devices
• Holds hanging banners up to 200lbs!
• The smooth motion provides two complete revolutions per minute
• Spinning and moving displays attract more attention
• Customers will see all sides of your message!
• Safety shut off to prevent injury and protect your display

Specifications:

• Hanging weight capacity: 200lbs
• Max. display size: 12' x 12'
• Power outlet: Includes rotating power outlet

• Standard RPM: 2

• Torque output @ 2 RPM: 39 in-lbs [4.4 Nm]

• Motor draw: 0.1A (12 watts)

• Safety clutch: Standard feature
• Shipping size: 15" x 15" x 17"
• Shipping weight: 17 lbs

Installation Guidelines:

• Max hanging weight = 200 lbs
• Max. Display Size: 12' x 12'
• Do NOT exceed rated capacity of motor unit
• Hanging load MUST be balanced and centered under motor

• Eyebolts can be added for rigging. Use wire rope to allow hanging sign to self-balance
• Do NOT allow bare wire rope to rub on eyebolt
• Wire rope should be protected to prevent fraying or failure
• WARNING! Electrical components are live when unit is plugged in
• Do NOT exceed rated electrical capacity of unit (see label on unit)
• Plug sign wiring into outlet on turntable.
• Plug unit into wall.
• Press direction switch to start unit


Options and Upgrades:

• Remote Control is available

Downloads: Spinning Motor for Hanging Banners

NOTE: To download files, click the links below or Right Mouse Click and choose "Save Target As..."
Spinning Motor Setup Spec Sheet
Spinning Motor Installation and Maintenance
